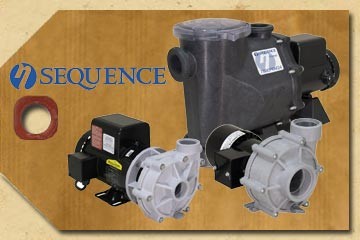

Sequence Pumps

Sequence Pumps

Sequence pumps are the leader in high efficiency and performance. Sequence is the name you can trust to provide the lowest cost of ownership. Their longevity is legendary. If overall value is the benchmark, Sequence products are the standard.

Applications

External end-suction centrifugal pumps for water features, garden ponds, and Koi fish ponds.

Versatility

Sequence pumps can serve a wide variety of water transfer and re-circulation applications. They are designed to operate efficiently over a wide range of flows and pressures. In larger systems, you can use two or more Sequence pumps in parallel to multiply your flow. They can also be customized for saltwater use.

Quiet

Sequence pumps installed near areas of relaxation and entertainment generate minimal noise levels.

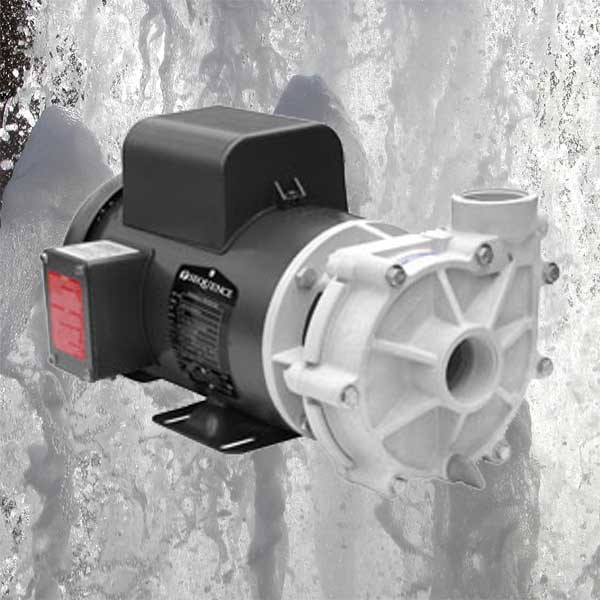

Sequence 1000 Series

The reference standard for ultra-efficient pond pumps. With an iron man-like reputation, the Sequence 1000 continues to raise the bar with high efficiency impellers, dry-run resistant seals and cutting edge Baldor industrial motors. All Sequence 1000 pumps include an 8-foot cord, stainless steel hardware and a three year warranty. 1 1/2" FNPT Inlet and Outlet.

Sequence 1000 Series Data Chart
ModelMax FlowMax HeadMax WattsMax Amps4’8’12’16’20’VoltageMotor
Enclosure
3300SEQ21 3300 21 206 2.36 3050 2700 2500 750 0 115 TEFC
4500SEQ21 4500 21 250 2.69 4150 3600 3150 2400 1000 115 TEFC
5100SEQ22 5100 22 293 3.03 4700 4250 3750 2900 1600 115 TEFC
6100SEQ23 6100 23 366 3.59 5600 5050 4500 3500 2300 115 TEFC

Note: This pump which can really be considered the pump that put sequence on the map is being discontinued. It is being replaced by the Sequence 4000 Series listed below. We have a few pumps left but they will not last long.

SKU Description Price Order
3300SEQ21 Sequence 3300SEQ21 Series 1000 Pump $ 715.00 Add To Cart
4500SEQ21 Sequence 4500SEQ21 Series 1000 Pump $ 746.00 Add To Cart
5100SEQ22 Sequence 5100SEQ22 Series 1000 Pump $ 776.00 Add To Cart
6100SEQ23 Sequence 6100SEQ23 Series 1000 Pump $ 806.00 Add To Cart

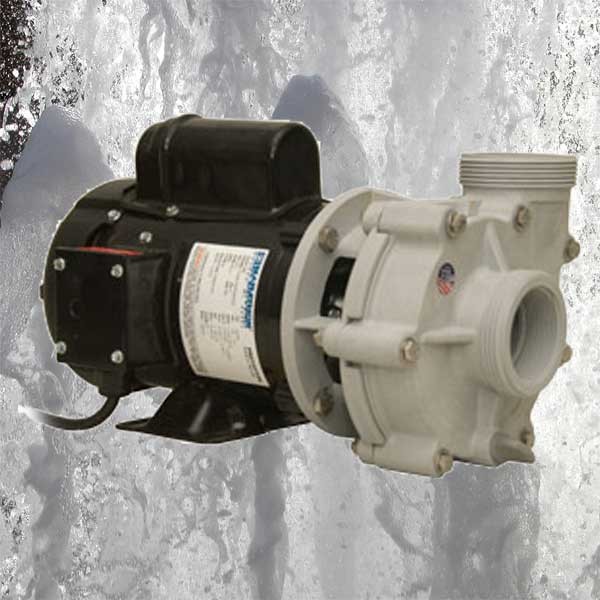

Sequence 4000 Series

Introducing the NEW Sequence® 4000. The new expansive design will meet today’s increased market demand for performance on all levels. Every Sequence® 4000 model is supplied complete with 2” FNPT and buttress thread ports and unions for ease of use. 3 year limited warranty. Made in USA. Supplied with an 8-foot, 115V cordset.

Sequence 4000 Series Data Chart
ModelMax FlowMax HeadMax WattsMax Amps4’8’12’16’20’VoltageMotor
Enclosure
3600SEQ20 3600 20.5' 227 1.9 3120 2640 2100 1440 240 115 TEFC
5000SEQ20 5000 20.5' 263 2.3 4500 3840 3120 2160 120 115 TEFC
5800SEQ21 5800 21' 296 2.6 5220 4500 3720 2760 960 115 TEFC
6800SEQ22 6840 22.2' 376 3.4 6240 5580 4800 3840 2520 115 TEFC
8200SEQ22 8220 22.3' 450 4.0 7500 6720 5760 4680 3120 115 TEFC

SKU Description Price Order
3600SEQ20 Sequence 3600SEQ20 Series 4000 Pump $ 727.00 Add To Cart
5000SEQ20 Sequence 5000SEQ20 Series 4000 Pump $ 758.00 Add To Cart
5800SEQ21 Sequence 5800SEQ21 Series 4000 Pump $ 783.00 Add To Cart
6800SEQ22 Sequence 6800SEQ22 Series 4000 Pump $ 899.00 Add To Cart
8200SEQ22 Sequence 8200SEQ22 Series 4000 Pump $ 917.00 Add To Cart

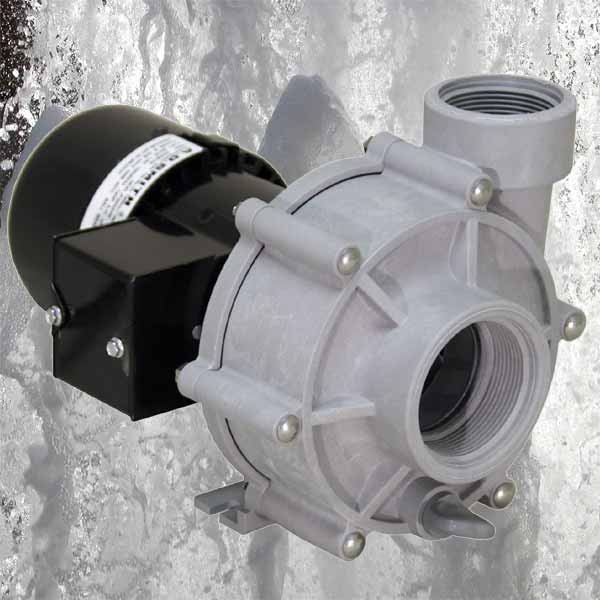

Sequence 750 Series

The Sequence 750 pumps are powered by A.O. Smith motors. These extremely durable pumps combine high efficiency, enclosed impellers and dry-run resistant seals with the latest in motor technology to provide many years of trouble free and low cost service. The motors utilize an enclosed, fan-cooled body constructed of aluminum alloy. An 8-foot cord with 115v molded plug and stainless steel hardware and a three year warranty are standard. Inlet: 2" FPT Outlet 1 1/2" FPT.

Sequence 750 Series Data Chart
ModelMax FlowMax HeadMax
Watts
Max
Amps
2’4’6’8’10’VoltageMotor
Enclosure
3600SEQ12 3600 12' 139 1.4 3240 2820 2400 1860 1200 115 TEFC
4200SEQ12 4200 12' 160 1.56 3720 3240 2700 2160 1500 115 TEFC

SKU Description Price Order
3600SEQ12 Sequence 3600SEQ12 750 Series Pump $ 487.00 Add To Cart
4200SEQ12 Sequence 4200SEQ12 Series 750 Pump $ 503.00 Add To Cart

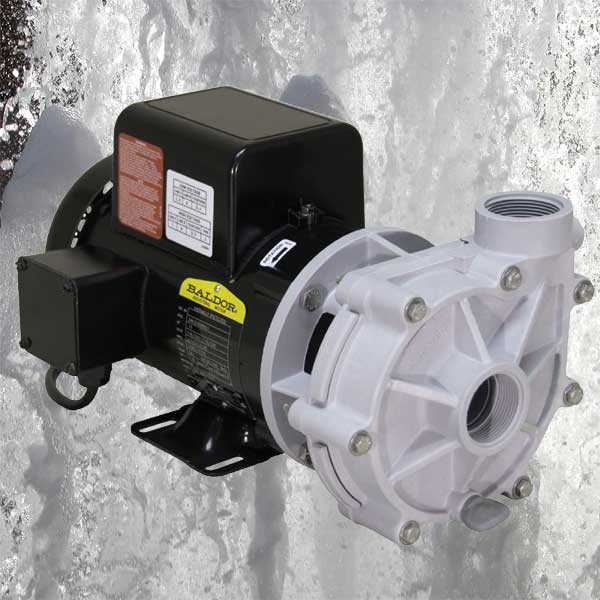

Sequence Power 1000

Massive flow! For the application that demands high performance, we offer the Sequence Power Series with abundant flow and pressure.

All Sequence Power 1000 pumps are powered by Baldor TEFC motors. These extremely durable pumps combine high efficiency, enclosed impellers and dry-run resistant seals with the latest in motor technology to provide many years of trouble free and low-cost service.

The motors utilize an enclosed, fan-cooled body constructed of aluminum alloy. An 8-foot cord with 230V molded plug and stainless steel hardware are standard. All Sequence Pumps are backed by a 3 year manufacturer warranty.

Sequence Power 1000 Data Chart
ModelMax FlowMax HeadMax
Watts
Max
Amps
10’20’30’40’50’VoltageMotor
Enclosure
8500PWR55 8500 55' 1385 2.76 2940 2520 2040 1380 240 230 TEFC
9200PWR69 9200 69' 1744 6.82 4440 3960 3300 2580 1440 230 TEFC
11000PWR72 11000 72' 2056 8.58 6000 5400 4740 3900 2940 230 TEFC

SKU Description Price Order
8500PWR55 Sequence 8500PWR55 Power Series $ 1107.00 Add To Cart
9200PWR69 Sequence 9200PWR69 Power Series $ 1166.00 Add To Cart
11000PWR72 Sequence 11000PWR72 Power Series $ 1295.00 Add To Cart

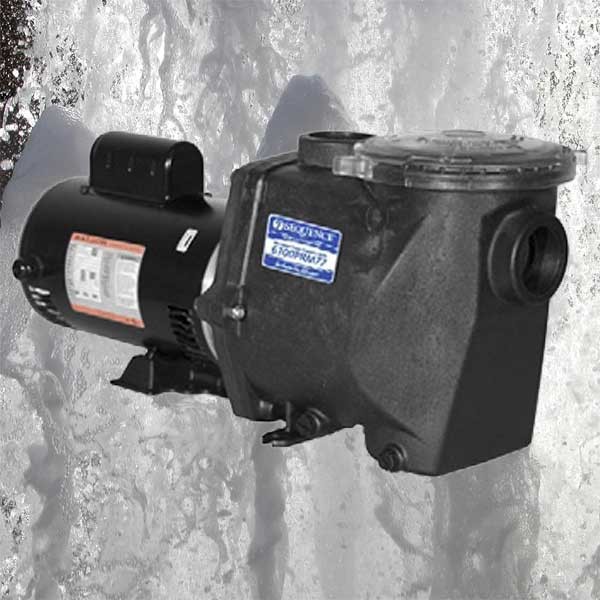

Sequence Power Primer

Accelerate your system with another self priming high speed power series configuration. If you have an application requiring self priming, immense flow, and high head pressure capabilities, this series is the solution for you. The Sequence® Power series is made for those demanding applications where the constraint for high pressure is NOT subject to negotiation! Made in the USA. Supplied with an 8-foot, 230V cordset

Sequence Power Primer Data Chart
ModelMax FlowMax HeadMax
Watts
Max
Amps
10’20’40’60’80’VoltageMotor
Enclosure
6300PRM77 6300 77' 1496 8.7 5880 5340 4200 2700 0 230 OPD
8100PRM81 8100 81' 1807 9.8 7620 7020 5700 4080 600 230 OPD
9300PRM83 9300 83' 2222 11.4 8820 8220 6840 5100 1980 230 OPD

SKU Description Price Order
6300PRM77 Sequence 6300PRM77 Power Primer $ 1407.00 Add To Cart
8100PRM81 Sequence 8100PRM81 Power Primer $ 1461.00 Add To Cart
9300PRM83 Sequence 9300PRM83 Power Primer $ 1461.00 Add To Cart

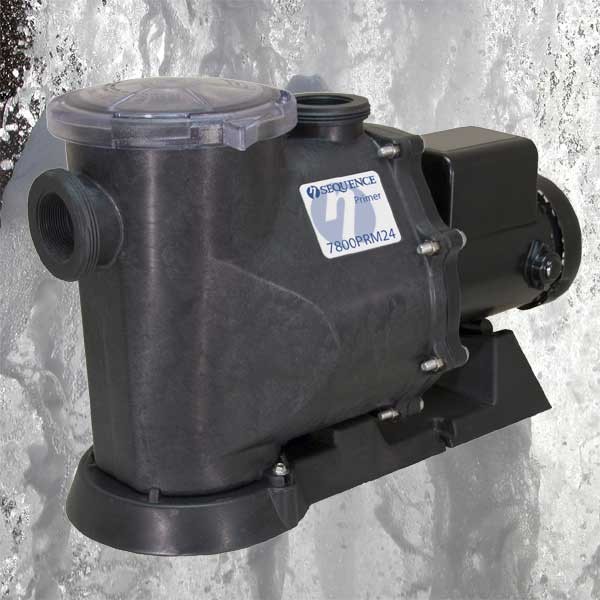

Sequence Primer Alpha

The Primer series integrates a basket-type pre-filter and self-priming capabilities into one efficient package for trouble-free operation. The motor is totally enclosed, fan-cooled for durability 115V or 230V with an 8-foot cordset. 3 year limited warranty.

Special features include an internal diffuser to allow for displacement of trapped air. This type of pump will continue to move water even when there is some air in the line.

The integrated strainer basket on all primer units helps protect the internal rotating parts of the pump from damage due to external debris being pulled into the pump. The simple cover allows for quick cleaning.

Sequence Primer Alpha Data Chart
ModelMax FlowMax HeadMax
Watts
Max
Amps
4’8’12’16’20’VoltageMotor
Enclosure
6800PRM19 6800 19' 369 3.93 6180 5340 4200 2700 0 115 TEFC
7800PRM24 7800 24' 504 5.02 7260 6480 5640 4500 3240 115 TEFC

SKU Description Price Order
6800PRM19 Sequence 6800PRM19 Primer Alpha $ 1301.00 Add To Cart
7800PRM24 Sequence 7800PRM24 Primer Alpha $ 1337.00 Add To Cart
Sequence Primer Champion

The Primer series integrates a basket-type pre-filter and self-priming capabilities into one efficient package for trouble-free operation. The motor is totally enclosed, fan-cooled for durability 115V or 230V with an 8-foot, cordset. 3 year limited warranty.

Special features include an internal diffuser to allow for displacement of trapped air. This type of pump will continue to move water even when there is some air in the line.

The integrated strainer basket on all primer units helps protect the internal rotating parts of the pump from damage due to external debris being pulled into the pump. The simple cover allows for quick cleaning.

Sequence Primer Champion Data Chart
ModelMax FlowMax HeadMax
Watts
Max
Amps
4’8’12’16’20’VoltageMotor
Enclosure
3700PRM21 3700 21' 228 2.76 2940 2520 2040 1380 240 115 TEFC
4900PRM21 4900 21' 310 3.37 4440 3960 3300 2580 1440 115 TEFC
6600PRM24 6600 24' 457 4.67 6000 5400 4740 3900 2940 115 TEFC

SKU Description Price Order
3700PRM21 Sequence 3700PRM21 Primer Champion $ 1250.00 Add To Cart
4900PRM21 Sequence 4900PRM21 Primer Champion $ 1279.00 Add To Cart
6600PRM24 Sequence 6600PRM24 Primer Champion $ 1301.00 Add To Cart
